Description
The EmStat Pico MUX16 is a developer board equipped with an EmStat Pico potentiostat module and a multiplexer and can be used in two modes:
- MUX16 mode where the WE, RE and CE are all switched at the same time. This allows for 16 individual cells to be connected to the board, each with their own WE, RE and CE.
- MUX256 mode where WE and RE+CE combined are switched separately, allowing 256 channels to be addressed as a matrix.
The multiplexer is controlled using 8 digital IO lines, this effectively creates an 8-bit address for the multiplexer. The 4 LSB bits of the multiplexer address switch the WE, the 4 MSB switch the RE and CE.

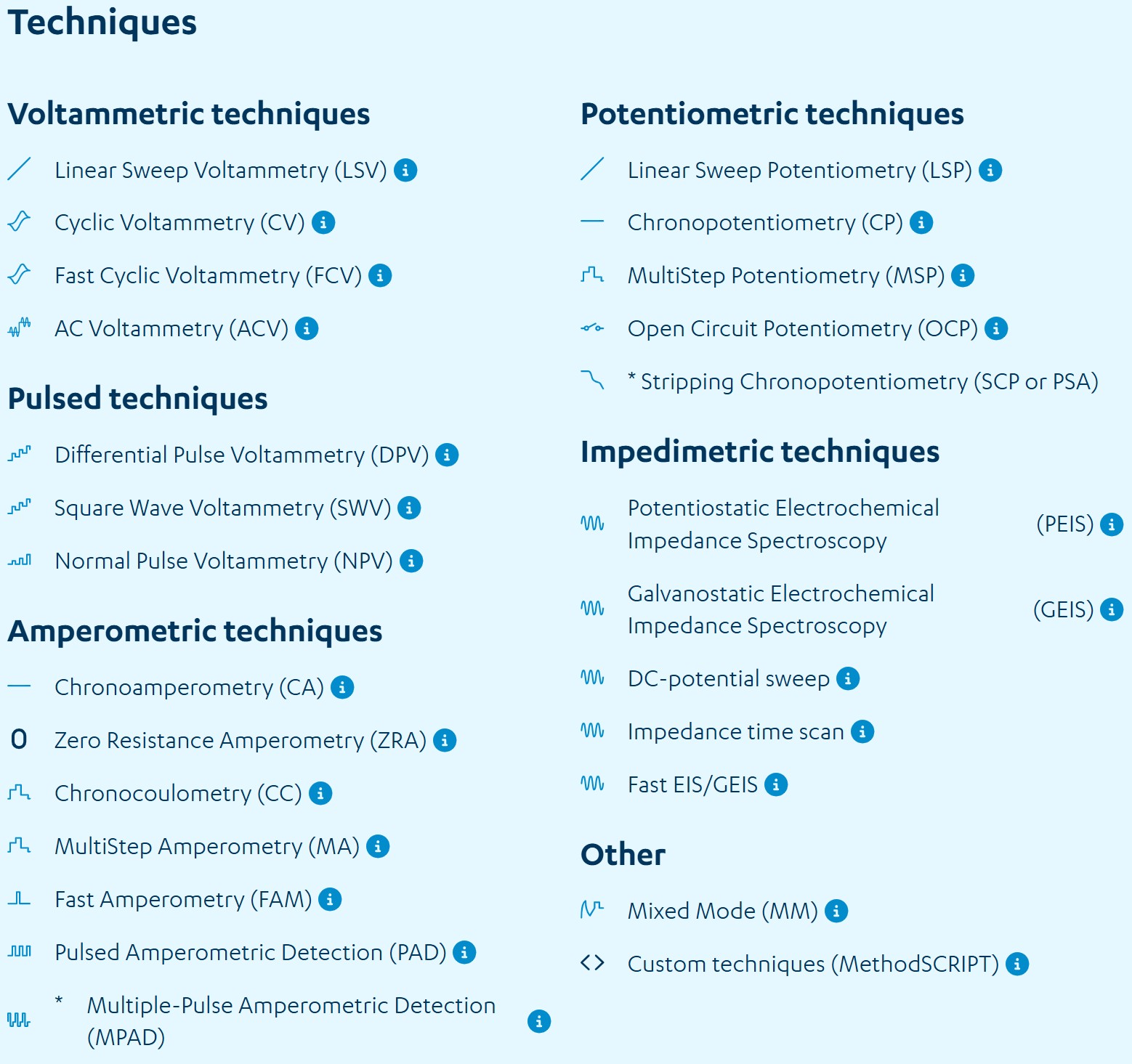

The embedded EmStat Pico is a proven, tested and calibrated potentiostat module which enables rapid prototyping, no programming skills are needed. With our free-to-use software PSTrace you can perform electrochemical measurements using your own electrochemical sensor. PSTrace generates MethodSCRIPT to easily reproduce your experiments on the EMstat Pico MUX16 as well as on our Market-Ready OEM instruments, or on your custom PCB. Our tested and calibrated modules are used by over 100+ OEM customers in over 30 countries.
