Description

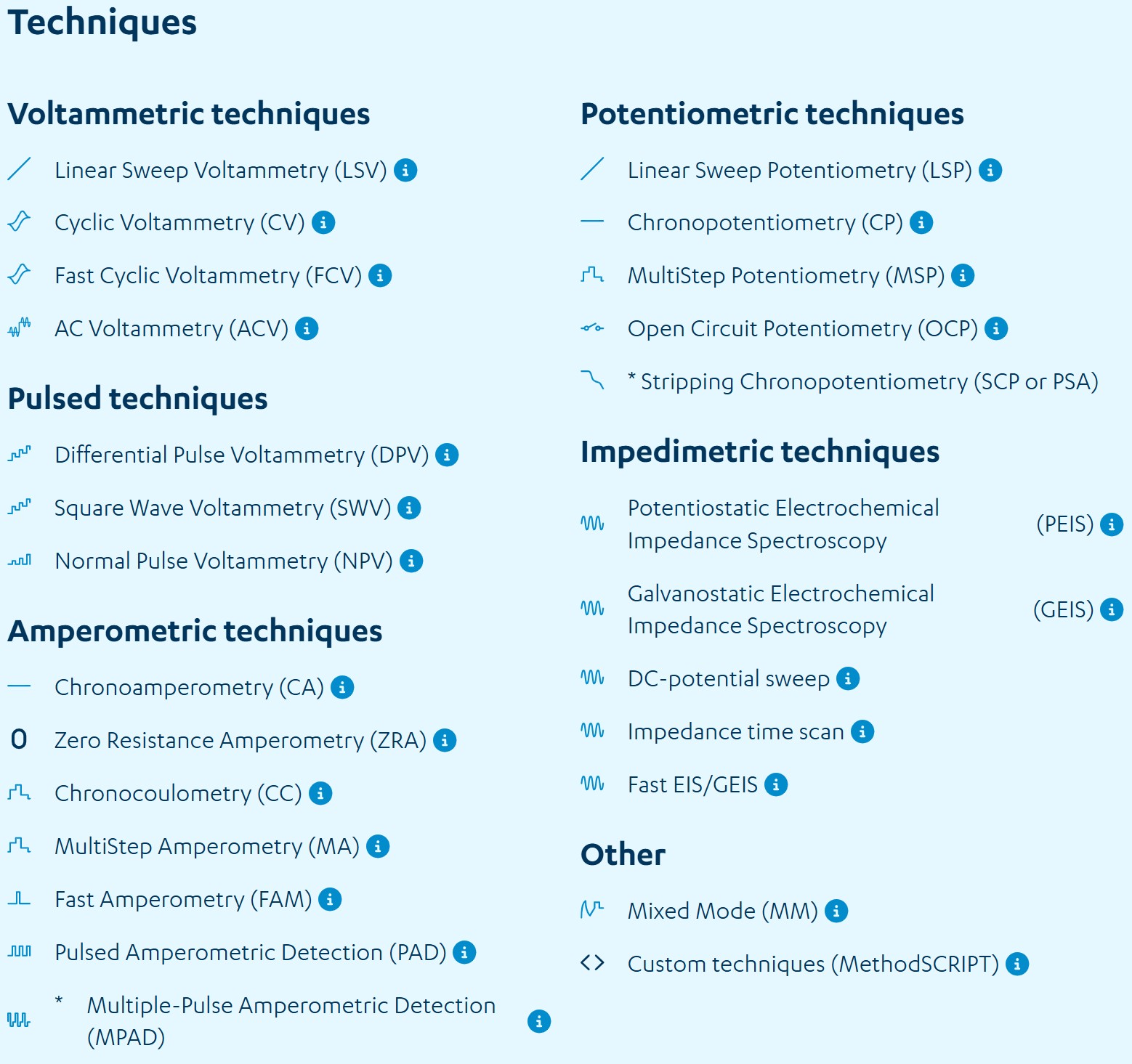

The EmStat4M is a potentiostat/galvanostat module supporting all common electrochemical techniques, including Electrochemical Impedance Spectroscopy (EIS). The EmStat4M can be evaluated with our PSTrace software for Windows. You can write your own applications for the EmStat4M module using our .NET libraries or MethodSCRIPT™ and control it from any platform or operating system.

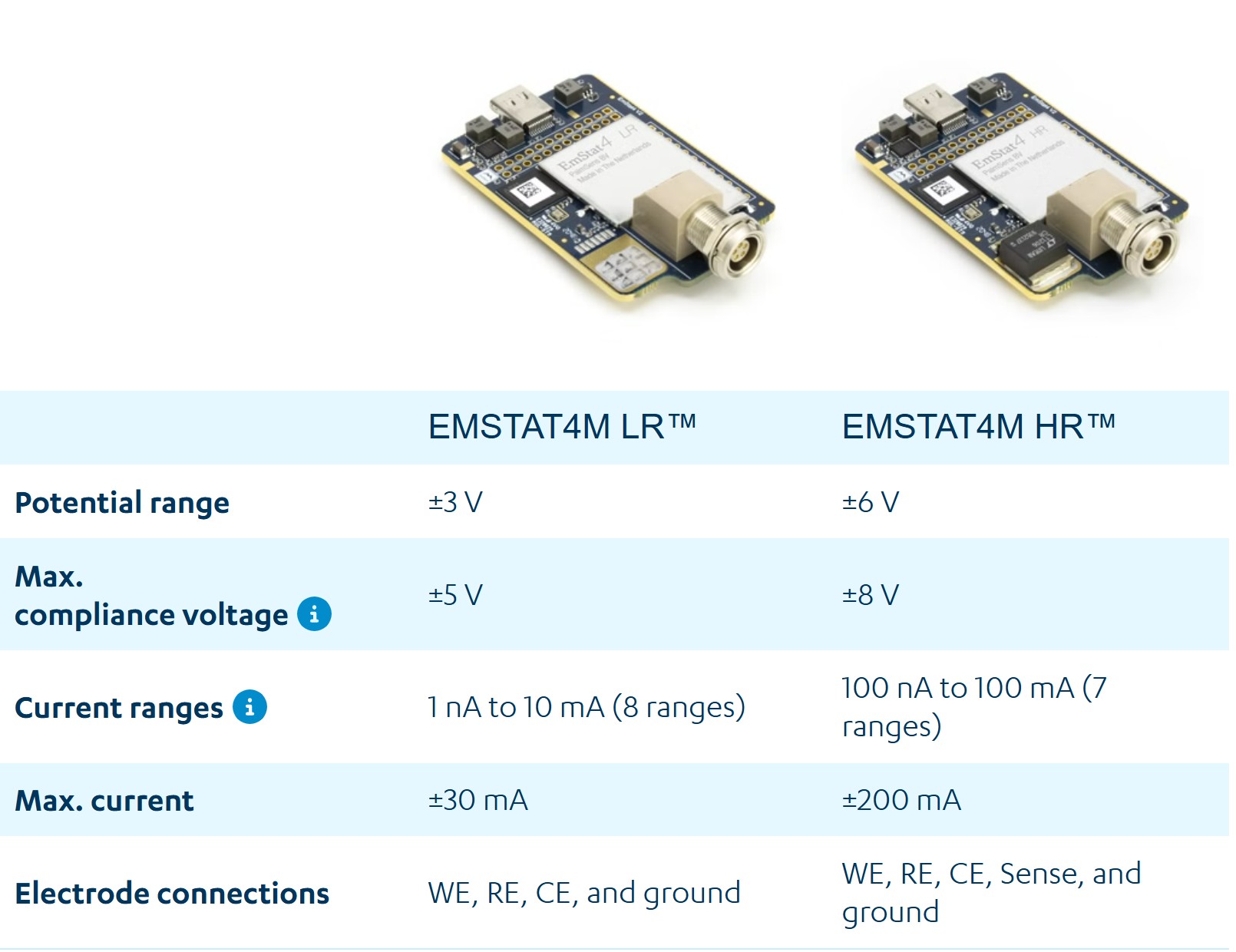

Versions
The EmStat4M comes in two different versions:
- Low Range (LR): current range from 1 nA to 10 mA (max. 30 mA)
- High Range (HR): current ranges from 100 nA to 100 mA (max. 200 mA)
Both versions can be configured with optional EIS/FRA with a maximum frequency of 200 kHz.
Start developing with the EmStat4M
The EmStat4M module can be ordered as a bare module or as part of a kit. We offer a Starter Kit and Development Kit as well. The Starter Kit includes a sensor cable, software, and more. The Development Kit comes with the EmStat4M module mounted on a development board. The development board features a Bluetooth module, Li-Ion battery charging, and options for making external connections to an Arduino for example.
