Description

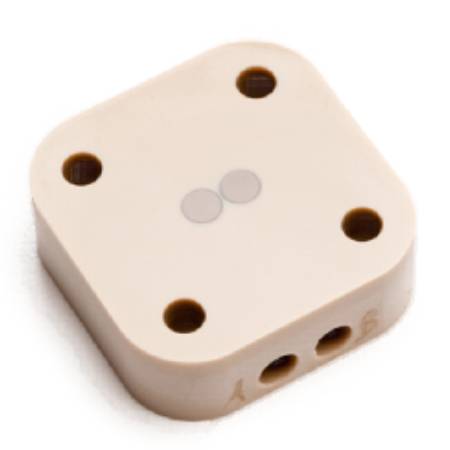

BASi working electrodes contain a cylinder of electrode material embedded in a PEEK block. The surface is polished to a mirror finish. The electrochemically active surface of the working electrode may be glassy carbon, gold, nickel, platinum, copper, or mercury/silver. Custom electrodes of non-listed material can be fabricated by special order.
The actual electrochemically active surface(s) in a working electrode are the centrally located dots in the working electrode block. In some cases there may be multiple working electrodes within a working electrode block. With multiple surfaces you can further optimize the detection of multiple analytes via dual or quad electrochemical detection.
A complete flowcell consists of two separate BASi part numbers, one for the Auxiliary Electrode, the other for a Cell Kit.
The Auxiliary Electrode includes a phenolic base, arms, and exit ports.
The Cell Kit includes a glassy carbon working electrode, gasket, reference electrodes, the retaining hardware for these electrodes, and a polishing kit.
To purchase a complete Electrochemical Detector Flowcell, order both an Auxiliary Electrode and a Cell Kit.
This range includes: MF-1000, MF-1002, MF-1008, MF-1012, MF-1004, MF-1095, MF-1032, MF-1030 & MF-1031
