Ivium Rotating Ring Disk Electrode Rotator

The Ivium RRDE apparatus is a rotator for hydrodynamic electrochemical applications which are to be used in combination with a potentiostat. The RRDE can be used for both disk (RDE) and ring-disk (RRDE) measurements. For best results they should be used with the Ivium bipotentiostats, however the Ivium RRDE can be used with any other suitable potentiostat.

Categories Electrodes, Rotators + Cell Stands Tag Ivium Technologies

Description

Description

Includes:

Rotator with driveshaft and brush assembly (no tips included)
Motor-controller unit
Connection cable
Power supply 100-240V
Rotator mounting bracket
Set of spare brushes (4)

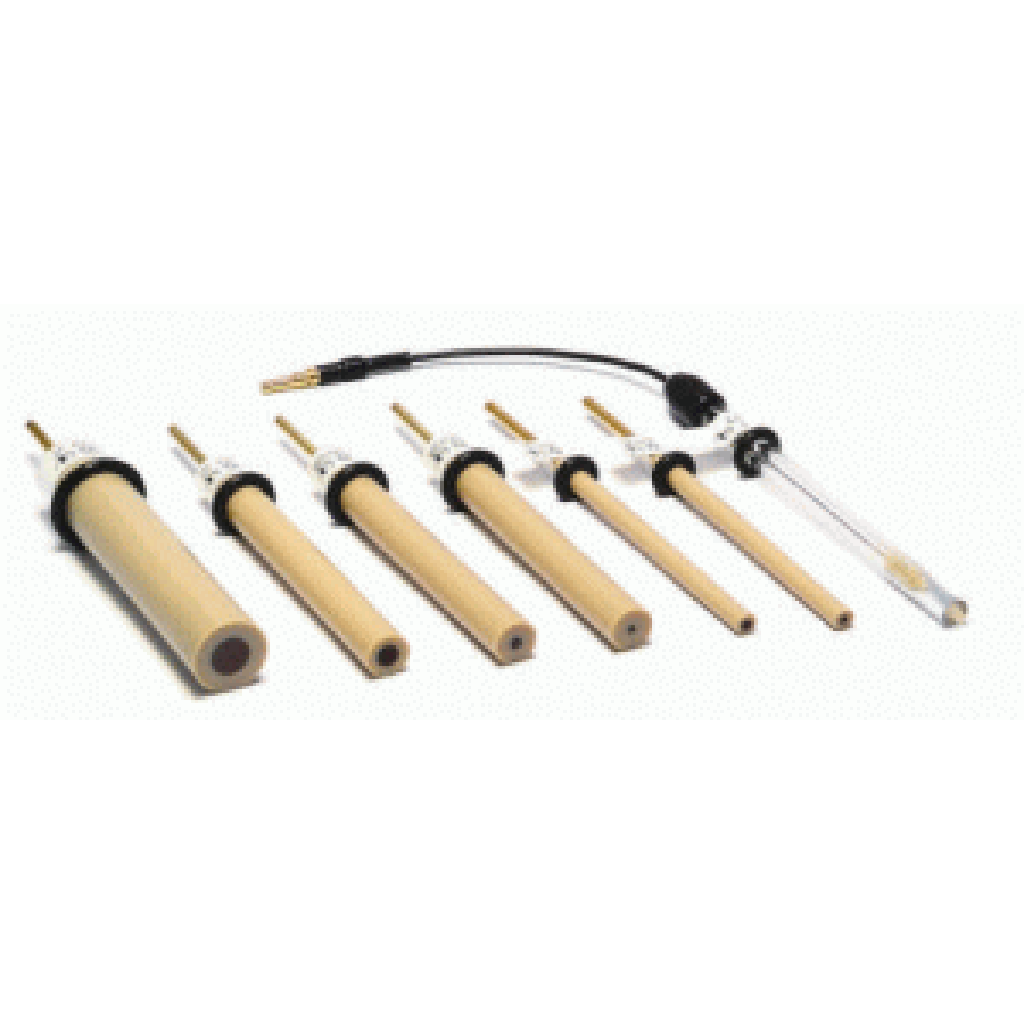

For details on compatible tips please use our contact form here.

IVIUM RRDE SPECIFICATIONS
Rotation Rate	100 – 10,000 rpm
Applied Resolution	1 rpm
Measured Accuracy	0.02 rpm (averaged and settled)
Rotation Stability	<1% (within 1 second)
Analaogue Control	1 rpm/mV or 2.5 rpm/mV via BNC connector
Electrode Contacts	4 x 4mm banana sockets
Operating Temperature	10 to 40 °C
