Description

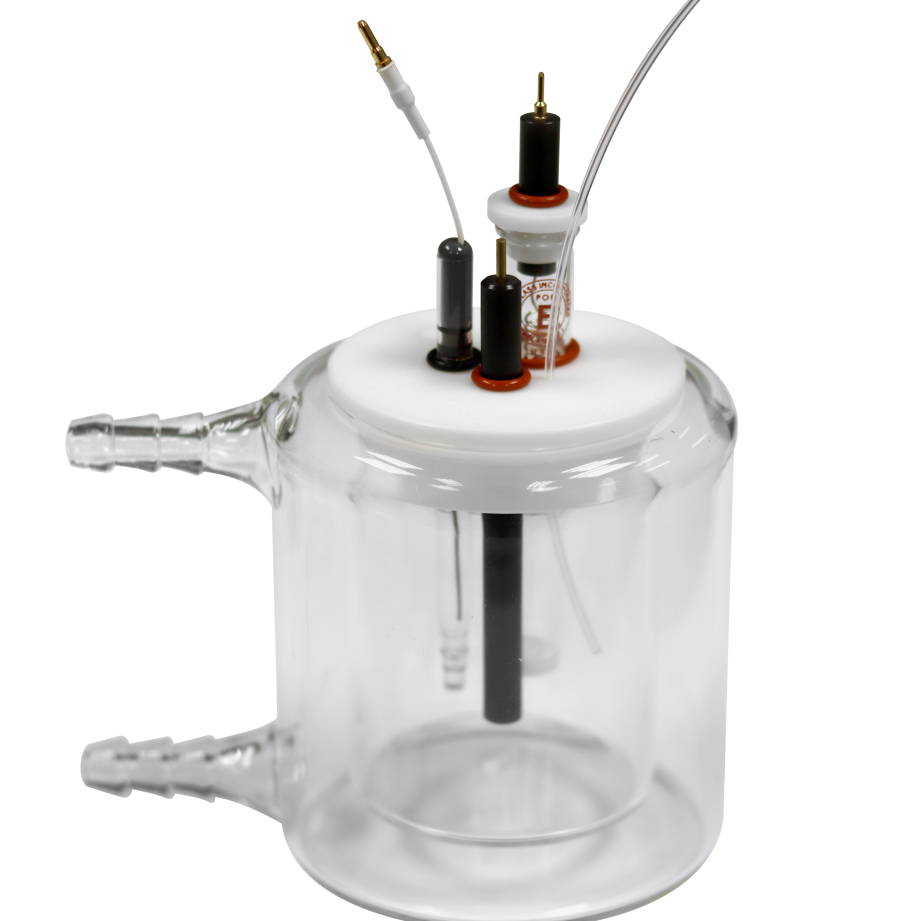

This water-jacketed standard electrochemical cell is designed for use with BASi standard reference electrodes, standard working electrodes, and auxiliary electrodes. The water-jacketed glass cell comfortably holds a volume of around 100 mL and will allow you to test 25-75 mL of solution once electrodes are placed into solution. The water-jacketed glass cell allows the user to perform electrochemical techniques at controlled and equilibrated temperatures. It also comes with Teflon tubing for purging or blanketing your solution.
Includes: (1 each)
ER-9132 – Teflon coated stir bar
MF-2052 – RE-5B Ag/AgCl electrode
MW-1033 – Coiled Pt wire aux. electrode
MR-1194 – 100mL glass cell
MR-1199 – BE teflon cell top
MR-1196 – Auxiliary electrode chamber
MR-1198 – Auxiliary electrode bushing
MF-2012 – Glassy carbon working electrode – 3 mm diameter
MF-1035 – Teflon tubing 1/16″ OD
MR-1236 – O-ring for BE cell aux chamber
