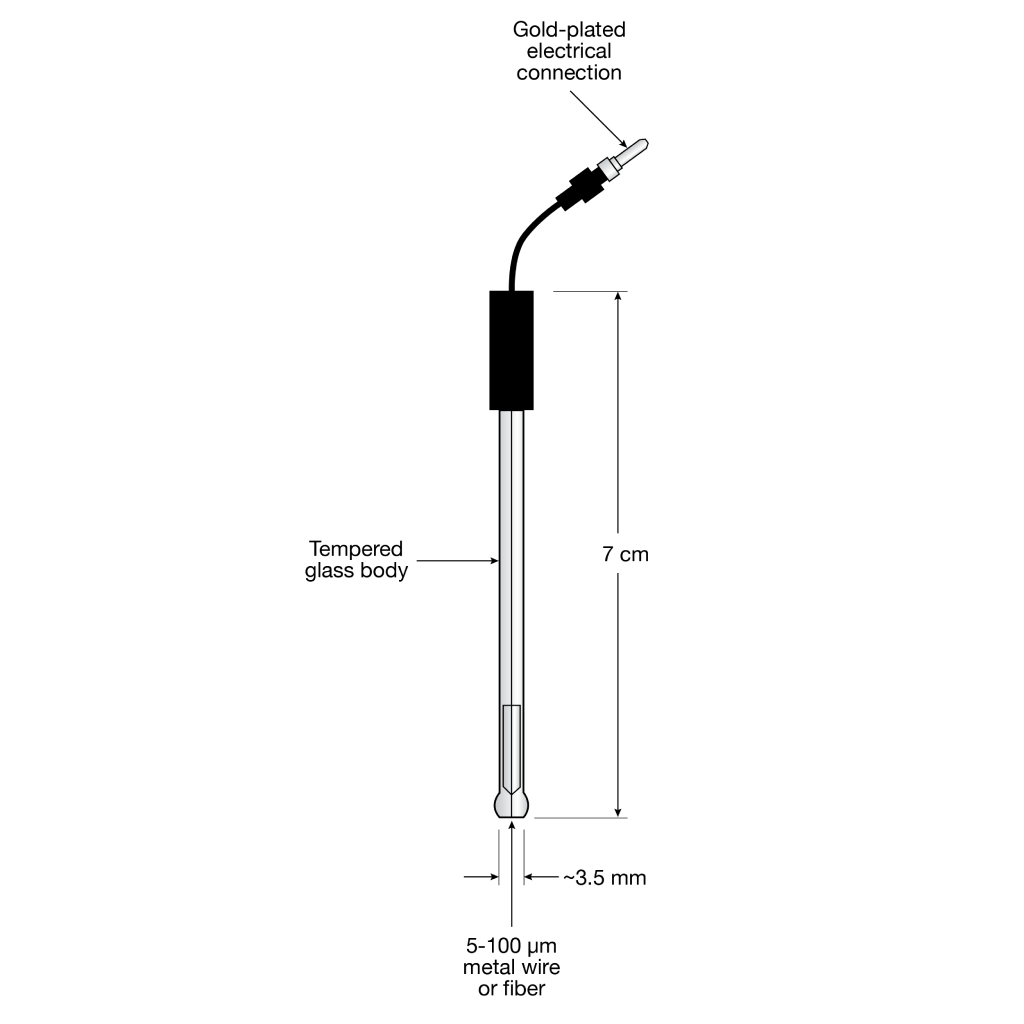

Microelectrodes consist of small diameter metal wires or fibers (5-100 µm) sealed within tempered glass bodies. The flattened end of the microelectrode is polished to a mirror finish, which can be maintained using the polishing materials contained in the PK-4 Polishing Kit. The electrical connection is a 0.060″ gold-plated pin. Dimensions of the electrode are approximately 7 cm long and 4 mm OD. Each microelectrode is visually inspected and electrochemically tested before shipping.
Includes: MF-2005, MF-2151, MF-2152, MF-2150, MF-2006, MF-2153, MF-2154, MF-2155, MF-2007.
Custom fabrication is available, e.g. 25 µm silver, 25 µm gold, etc. Please Contact Alvatek to discuss your requirements.
| Electrode Diameter | 10 µm, 11 µm, 25 µm, 50 µm, 100 µm |
|---|---|
| Electrode Material | Carbon, Copper, Glassy Carbon, Gold, Nickel, Palladium, Platinum, Silver |
